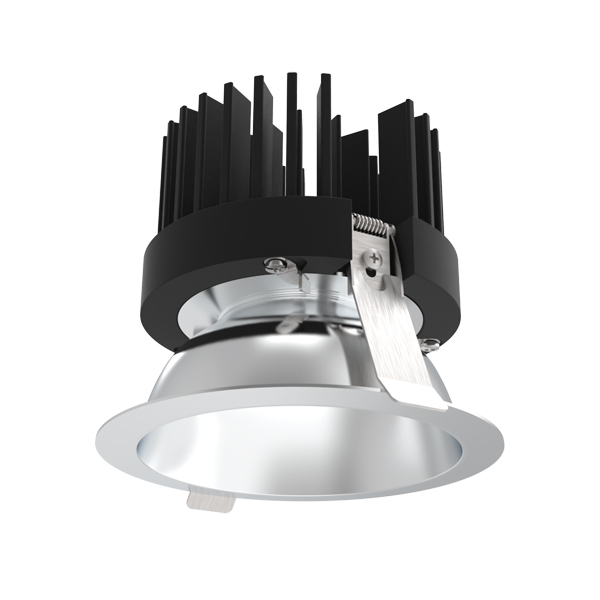

HL4 / HL4R High Lumens LED Downlight

HL Series
Features
New construction and remodel series
Apply for office / healthcare / institution / retail market
Narrow and Medium distributions beam angle
5-selectable / 3-selectable / 2700K - 5000K C.C.T
CRI > 90, high color clarity
Universal voltage 120V-277V; Standard 0-10V driver dims to 1%

Description

High lumen recessed downlight
Add Inquiry (0)
Added to Inquiry list.
HL4

Ordering Information




Series CRI C.C.T Lumens

HL4 = 4 inch Recess light

HL4R = 4 inch remodel recess light

9 = 90 CRI

27 = 2700K

30 = 3000K

35 = 3500K

40 = 4000K

50 = 5000K

60 = 6000K

65 = 6500K

3S = 3CCT selectable (3000K -4000K -5000K)

5S = 5CCT selectable (30K-35K-40K-50K-65K)

21 = 2100lm

24 = 2400 lm

29 = 2900 lm

(Nominal lumen under 3000K)

Reflector Distribution Finish Driver

4F = 4” conical reflector

4B = 4” baffle reflector

4NN = 4inch,narrow beam,UGR<10

4MN = 4inch,medium beam,UGR<10

4MW = 4inch,medium beam,UGR<20

A = Specular Clear (for 4F reflector only)

H = Semi-Specular (for 4F reflector only)

W = Matte White

B = Matte Black

DU10 = universal 100-277v,50/60Hz, 0-10V dimming to 1%
